How To: Activate Preprogrammed Wifi Modules for Yale Locks

Ken
  • Updated

How To: Activate Preprogrammed Wifi Modules for Yale Locks

For Module Activation with Z wave locks, click here



When to use this article:

This is only for modules that were pre programmed by Lynx. If you are setting up a new Yale Wifi lock, please review this article.



When a lock is purchased from Lynx, it will typically have a Wi-Fi module that is pre-programmed for the specific door. The lock and module will be shipped separately, so you will need to connect them on site after installation.


In order to use these modules, you have to activate the module, below is a couple of key notes to remember before activating the module in your new lock.:

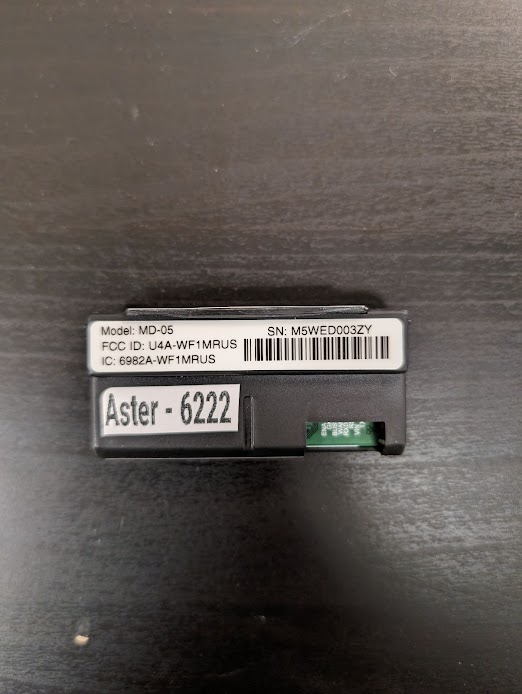

  • Pick the Module labeled for the property you are installing as these are pre-programmed for the specific property.
  • Ensure the lock is installed first, the module goes in next, and the batteries are inserted last.
  • Make sure that you are using the correct module for your lock. A module set up for a YRD216 (deadbolt) lock should go into a YRD216, while a module that was programmed for a YRL216 (lever lock) must be installed in a YRL216.
Note: If you are using existing locks and modules programmed by us, please ensure to
reset the lock with the old module before proceeding with the steps listed below.
The lock should be reset using the Yale app instead of manually resetting it from the lock itself.





The Process for Module Activation:



  Actions

Step 1:

Install lock and module.
Step 2: Place batteries in and wait for the lock to power on.
Step 3:

Create the programming code which is provided with the lock using the following key sequence (Skip this step if the lock was programmed previously):



YRL216 - "Gear, 1, Gear, [new programming code], Gear "

YRD216 - "Gear, 1, Gear, [new programming code], Gear, Gear "
Step 4:

Input the following sequence on the lock keypad:

[programming code] [gear] 7 [gear]  [gear]

After entering this sequence, wait 30 - 40 seconds for the lock to time out. Your module is activated!

*If you get a "module communication error", please follow these steps:

1. Open the Yale app and navigate to the lock to be connected
2. The app will prompt: "Module Communication Error". Select "Fix This Now"
3. The app will ask "Is the module in the same lock as before, or a different lock?" Select "Different Lock"
4. The app will ask "Would you like to factory reset the module for use with this lock, or use it as is and sync your entry codes with this lock"? Select "Sync Entry Codes"
5. App will prompt to power-cycle the lock. Follow the steps to refresh the module (remove battery, press a key, remove module, wait 30 seconds, replace module, replace battery, wait for lock to boot)
6. Click "My Lock has Restarted"
7. Register module: enter [programming code] [gear] 7 [gear] [gear] on the lock keypad, then wait for lock to time out.
8. Click "Module is Registered".
9. Confirm lock is connected and working via Bluetooth (test lock/unlock in the app).
10. If needed, follow the steps to update the module's Wi-Fi connection


Step 5:

Please test the lock on the Lynx dashboard to ensure the lock is responding as expected. Click the refresh icon to enforce the lock to sync status with Lynx.
Step 6:

Provision the Lock and wait for the emergency code to sync.
Step 7: Test the emergency code and other functions to confirm everything is working normally.



Lynx_Logo.png Please reach out to Support if you have any trouble during this process
